Instruction

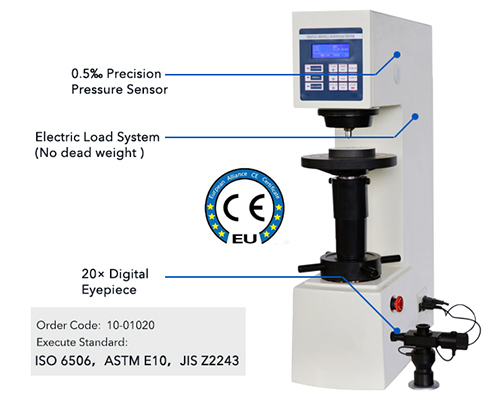

     DHB-3000 electronic Brinell hardness tester is a mechatronics product with precise mechanical structure and microcomputer control closed-loop system. Simple, reliable and economical. Popular in heat treat facility, tool room, workshop, metallographic laboratory and inspection lab.

     Suitable for cast iron, steel, non-ferrous metals and soft alloys, as well as hard plastic and bakelite.

      Versatility
  10 steps test force 62.5-3000 kgf (612.9-29420 N)

      Reliability & Repeatability
  Electric loading and unloading test force is fed back by 0.5‰ precision pressure sensor
  CPU control and can automatically compensate the test force lost in the test

      Easy Operation & Display
  Digital display micro eyepiece, LCD screen directly display hardness value and test force, load time, indentation length
  Press the eyepiece button, hardness value can be automatically calculated and displayed on the screen

Technical Specification
