Instruction

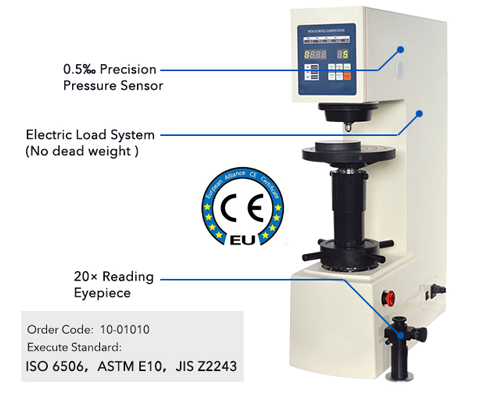

      EHB-3000 electronic Brinell hardness tester is a mechatronics product with precise mechanical structure and microcomputer control closed-loop system. Simple, reliable and economical. Popular in heat treat facility, tool room, workshop, metallographic laboratory and inspection lab.

      Suitable for cast iron, steel, non-ferrous metals and soft alloys, as well as hard plastic and bakelite.

      Versatility
  10 steps test force 62.5-3000 kgf  (612.9-29420 N)

      Reliability & Repeatability
  Electric loading and unloading test force is fed back by 0.5‰ precision pressure sensor
  CPU control and can automatically compensate the test force lost in the test

      Easy Operation & Display
  Test force and dwell time can be selected on panel, with reliable repeatability and convenient operation
  Optional Brinell image automatic measurement system V1.0


Technical Specification

		EHB-3000
Main Load	kgf	62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf
	N	612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N
Test Range		3.18-653HBW
Hardness Reading		Check Hardness Table
Microscope		20× Reading Microscope
Effective Field of View		6 mm
Min. Measuring Unit		5 μm
Dwell Time		0~60 s
Sample Height		0-205 mm
Throat Depth		135 mm
Power Supply		AC220V, 50Hz
Execute Standard		ISO 6506, ASTM E10, JIS Z2243, GB/T 231.2
Dimension		Machine: 545 W × 235 D ×755 H mm Packing: 650 W × 435 D×1020 H mm
Weight		Net Weight: 130 kg Gross Weight: 160 kg
