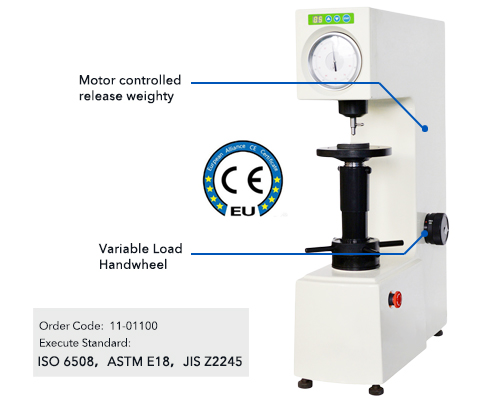

HR-150P Plastics Rockwell Hardness Tester
InstructionHR-150P is an economical and practical manual plastic Rockwell hardness tester. Simple, reliable and easy to check hardness testing value. Popular in heat treat facility, metallographic laboratory, tool room, workshop, and inspection lab.
Suitable for hard plastics, hard rubbers, aluminum, copper, tin, soft steel, synthetic resins and fricative materials etc.
Easy Operation & Reliability
Motor controlled release weight, test force transformation is obtained by rotation of variable load handwheel Automatic loading and unloading test force mechanism is adopted, dwell time can be selected, high sensitivity and stability Advanced design, easy to operate. Engineered to obtain highly sensitive and accurate readings.Technical Specification| HR-150P | |
| Minor Load | 10 kgf (98.07 N) |
| Major Load | 60 kgf (588.4N), 100 kgf (980.7 N), 150 kgf (1471 N) |
| Indenter | Φ3.175mmBall Indenter, Φ6.35mmBall Indenter, Φ12.7mmBall Indenter |
| Loading Method | Automatic (Loading/Dwell/Unloading) |
| Hardness Reading | Dial |
| Hardness Resolution | 0.5 HR |
| Dwell Time | 2-60 s |
| Max. Sample Height | 185 mm |
| Throat Depth | 165 mm |
| Power Supply | AC220V, 50Hz |
| Execute Standard | ISO 6508, ASTM E18, JIS Z2245, GB/T 230.2 |
| Dimension |
Machine: 520 W ×215 D ×700 H mm， Packing: 650 W ×370 D ×950 H mm |
| Weight |
Net Weight: 78kg Gross Weight: 100kg |
