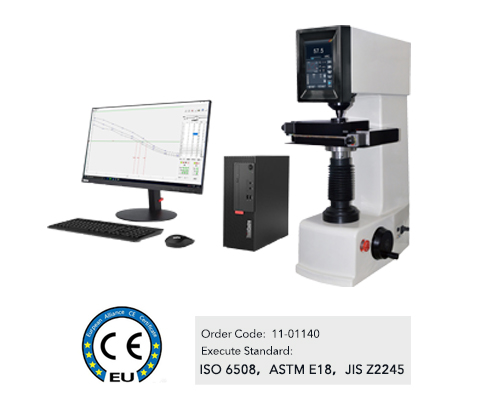

THR-150AV3 Fully Automatic Rockwell Hardness Tester
InstructionTHR-150AV3 adopts a new loading structure, head moves up and down at high speed, with excellent test efficiency. Popular in heat treat facility, tool room, workshop, metallurgical & metallographical laboratory and inspection lab.
Suitable for quenching, tempering, annealing, chilled castings, malleable castings, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc. It is also suitable for surface hardening steel, material surface heat treatment and chemical treatment layer, copper, aluminum alloy, sheet, galvanized, chrome-plated, tin-plated materials, chilled castings, etc.
Versatility & Reliability
Selection of all scales of Rockwell and superficial Rockwell hardness Hardness scale conversion, one value and multiple changes Use electric loading and unloading test force instead of weights Advanced arc correction compensation technology Accurate computer-controlled XYZ axis movement in all directions, X-Y motorized test table, continuous test as path setting Multi-point settings of test table, one key operation to achieve multi-point automatic test function.Easy Operation and Output
One-click to complete the machine head descending, indenter loading, holding and unloading, and display the hardness value Touchscreen display and operation, dynamic curve graph, real-time monitoring force and displacement sensor operation status Data storage, automatic calculation of maximum, minimum, average, standard deviation and repeatability Test results can be selectively deleted and output. And software can generate WORD, EXCEL reportsStrong Software Database
External computer can perform data statistics, including calculation of extreme values, average values, standard deviations, and establish a statistical database Database allows the input of other inspection data, and statistical analysis is carried out together. Customize the test report, select the required test parameters, test results and graph curves in the report Test results and reports can be transmitted and used over the network, to facilitate network managementTechnical Specification| THR-150AV3 | |
| Minor Load | 3 kgf (29.42 N), 10 kgf (98.07 N) |
| Major Load |
15 kgf (147.1 N), 30 kgf (294.2 N), 45 kgf (441.3 N), 60 kgf (588.4 N), 100 kgf (980.7 N), 150 kgf (1471 N) |
| Indenter |
Diamond Rockwell Indenter, Φ1.588mmBall Indenter |
| Loading Method | Automatic (Loading/Dwell/Unloading) |
| X-Y Test Table |
Size: 250×160mm, Travel: 100×100mm, Dimension: 365×300×140mm，Resolution: 1μm The test table has multi-point settings, one key operation to achieve multi-point automatic test function. And it can add other functions according to customers’ requirement! |
| Operation | Automatic or Manual Lifting Screw, Automatic Rising and Homing, One Key to Complete |
| Display | Touch Screen, Menu Selection, Hardness Display, Parameter Setting, Data Statistics, Storage, etc. |
| Data Statistics | Test Number, Average / Maximum / Minimum Value, Repeatability, Set Upper and Lower Limits of Hardness Value with Warning Function, etc. |
| Test Scale |
HRA, HRD, HRC, HRFW, HRBW, HRGW, HRHW, HREW, HRKW, HRL, HRM, HRP, HRR, HRS, HRV HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y |
| Conversion Scale | HV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HBW |
| Data Output | USB Interface, RS232 Interface |
| Hardness Resolution | 0.1 HR |
| Dwell Time | 0-99 s |
| Sample Height | 0-210 mm |
| Throat Depth | 150 mm |
| Power Supply | AC220V, 50Hz |
| Execute Standard | ISO 6508, ASTM E18, JIS Z2245, GB/T 230.2 |
| Dimension |
Machine: 535 W ×410 D ×890 H mm， Packing: 820 W ×460 D ×1170 H mm |
| Weight |
Net Weight: 85kg Gross Weight: 105kg |
