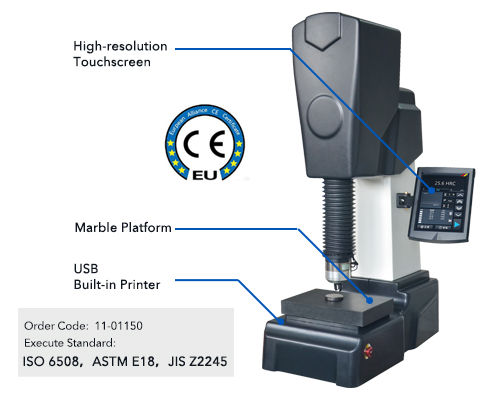

ITHR-150A Automatic Rockwell Hardness Tester
InstructionITHR-150A adopts a new loading structure, head moves up and down at high speed, with excellent test efficiency to test Rockwell hardness. Popular in heat treat facility, tool room, workshop, metallurgical & metallographic laboratory and inspection lab.
Suitable for quenching, tempering, annealing, chilled castings, malleable castings, hard alloy steel, aluminum alloy, copper alloy, bearing steel, surface hardening steel, material surface heat treatment and chemical treatment layer, copper, aluminum alloy, sheet, galvanized, chrome-plated, tin-plated materials, bearing steel, chilled castings.
Versatility
Selection of all scales of Rockwell and superficial Rockwell hardness Hardness scale conversion, one value and multiple changesReliability & Repeatability
High quality marble platform, with higher flatness Adavanced arc correction compensation technology Running at high speed, automatically adjusts the descending speed when sensing the sample, and loads the test force smoothlyEasy Operation and Output
One-click to complete the machine head descending, indenter loading, holding and unloading, and display the hardness value Touchscreen display and operation, dynamic curve graph, real-time monitoring force and displacement sensor operation status Data storage, automatic calculation of maximum, minimum, average, standard deviation and repeatability Test results can be selectively deleted & output by built-in printer, and Excel data files can be output via USBTechnical Specification| ITHR-150A | |
| Minor Load | 3kgf (29.42N), 10kgf (98.07N) |
| Major Load |
15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N), 60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N) |
| Indenter |
Diamond Rockwell Indenter, Φ1.588mmBall Indenter |
| Loading Method | Automatic (Loading/Dwell/Unloading) |
| Operation |
Automatic Rising and Homing, One Key to Complete |
| Hardness Reading | Touch Screen |
| Test Scale |
HRA, HRD, HRC, HRFW, HRBW, HRGW, HRHW, HREW, HRKW, HRL, HRM, HRP, HRR, HRS, HRV HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y |
| Conversion Scale | HV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HBS, HBW, HSD, HLD |
| Data Output | Built-in Printer, RS232 Interface |
| Hardness Resolution | 0.1 HR |
| Dwell Time | 0-99 s |
| Sample Height | 0-240 mm |
| Throat Depth | 205 mm |
| Power Supply | AC220V, 50Hz |
| Execute Standard | ISO 6508, ASTM E18, JIS Z2245, GB/T 230.2 |
| Dimension |
Machine: 535 W ×678 D ×1088 H mm， Packing: 820 W ×600 D ×1200 H mm |
| Weight |
Net Weight: 80kg Gross Weight: 100kg |
