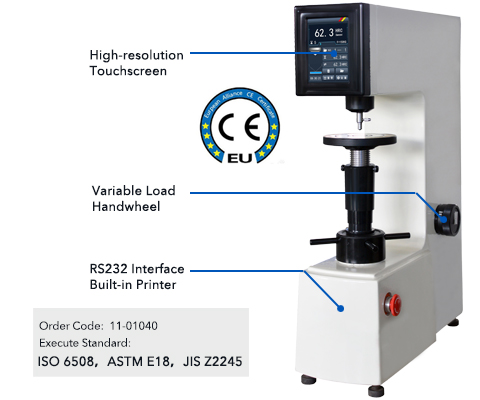

THR-150 Touchscreen Rockwell Hardness Tester
InstructionTHR-150 equipped with a high-resolution color touchscreen with good reliability, excellent operation and easy watching. Simple, reliable and easy to check hardness testing value.
Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc.
Versatility
Selection of all Rockwell scales Conversion scales of different kinds of hardnessEasy Operation and Output
Color touchscreen display and set current test scale, force, indenter, dwell time, hardness conversion value, indenter type Automatic calculation of maximum, minimum and average value Test results be saved and printed out by Built-in printer. Also equipped with RS232 interfaceTechnical Specification| THR-150 | |
| Minor Load | 10 kgf (98.07 N) |
| Major Load | 60 kgf (588.4 N), 100 kgf (980.7 N), 150 kgf (1471 N) |
| Indenter |
Diamond Rockwell Indenter, Φ1.588mmBall Indenter |
| Loading Method | Automatic (Loading/Dwell/Unloading) |
| Hardness Reading | Touch Screen Display |
| Test Scale | HRA, HRD, HRC, HRFW, HRBW, HRGW, HRHW, HREW, HRKW, HRL, HRM, HRP, HRR, HRS, HRV |
| Conversion Scale | HV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HBW |
| Data Output | Built-in Printer，RS232 Interface |
| Hardness Resolution | 0.1 HR |
| Dwell Time | 0-60 s |
| Max. Sample Height | 185 mm |
| Throat Depth | 165 mm |
| Power Supply | AC220V, 50Hz |
| Execute Standard | ISO 6508, ASTM E18, JIS Z2245, GB/T 230.2 |
| Dimension |
Machine: 520 W ×215 D ×700 H mm， Packing: 650 W ×370 D ×950 H mm |
| Weight |
Net Weight: 78kg Gross Weight: 100kg |
