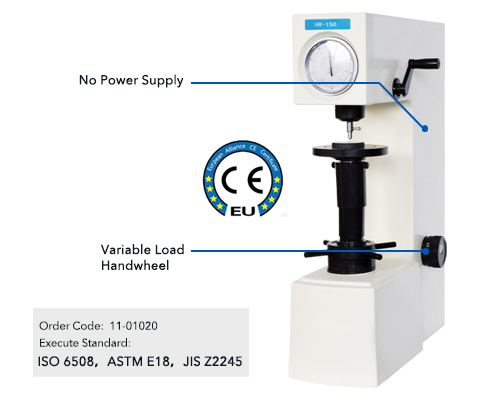

HR-150 Rockwell Hardness Tester
InstructionHR-150 is an economical manual Rockwell hardness tester. Simple, reliable and easy to check hardness testing value. Popular in heat treat facility, tool room, workshop, metallurgical & metallographic laboratory and inspection lab.
Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc.
Easy Operation & Reliability
Simple product design, easy to operate, stable performance, popular in manufacturing and teaching demonstration No power supply is required, the speed of applying the test force is adjusted by the hydraulic buffer Test force transformation is obtained by the rotation of the variable load handwheel Compatible with most standard Rockwell hardness testers, including HRA, HRB, HRC, HRD, etc.Technical Specification| HR-150 | |
| Minor Load | 10 kgf (98.07 N) |
| Major Load | 60 kgf (588.4 N), 100 kgf (980.7 N), 150 kgf (1471 N) |
| Indenter |
Diamond Rockwell Indenter, Φ1.588mmBall Indenter |
| Loading Method | Manual |
| Hardness Reading | Dial |
| Hardness Resolution | 0.5 HR |
| Max. Sample Height | 185 mm |
| Throat Depth | 165 mm |
| Execute Standard | ISO 6508, ASTM E18, JIS Z2245, GB/T 230.2 |
| Dimension |
Machine: 520 W ×245 D ×700 H mm， Packing: 650 W×370 D×950 H mm |
| Weight |
Net Weight: 78kg Gross Weight: 100kg |
