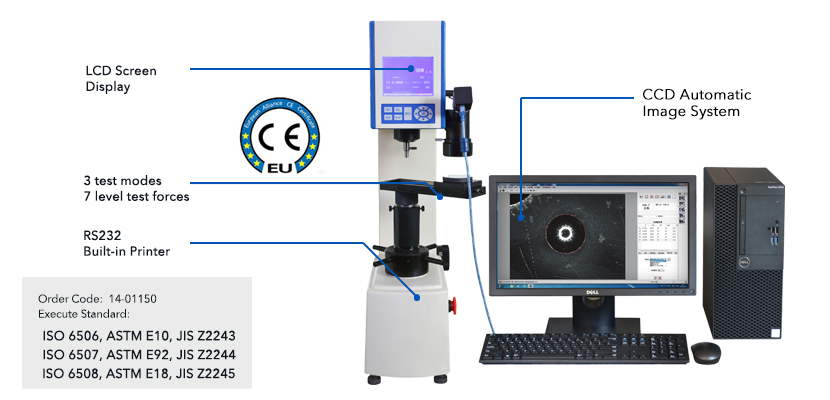

BRV-187.5D+CCD Brinell Rockwell & Vickers Hardness Teste


BRV-187.5D+CCD is a multi-functional digital hardness tester with Brinell, Rockwell &Vickers. Widely used and easy to operate, popular choice for industrial enterprises and scientific research institutes.
Suitable for hardened and surface hardened steel, hard alloy steel, casting parts, non-ferrous metals, various kinds of hardening and tempering steel and tempered steel, carburized steel sheet, soft metals, surface heat treating and chemical treating materials etc.
Versatility & Reliability


Easy Operation and Output




CCD Automatic Image System

System can realize image capture, calibration, image processing, geometric measurement, document annotation, album management, and fixed-size printing, etc.

Automatic measurement of indentation diameter, display Brinell, Vickers hardness value, the system can convert the measured hardness value into other hardness values such as HR hardness

Automatically calculates average value, variance and other values; automatically marks abnormal values, automatically alarms when the hardness exceeds the specified value

Calibration function is convenient for measuring indentation size and can be calibrated. If equipped with a calibration grid, system can automatically perform full-scale calibration on intersection points of the calibration grid to reduce measurement errors caused by lens distortion

Automatically generate a report in WORD or EXCEL format, and the report template can be provided by the user

Item | Spec. |
Rockwell Test Force | 60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N) |
Brinell Test Force | 30kgf (294.2N), 31.25kgf (306.5N), 62.5kgf (612.9N), 100kgf (980.7N), 187.5kgf (1839N) |
Vickers Test Force | 30kgf (294.2N), 100kgf (980.7N) |
Indenter |
Diamond Rockwell Indenter, Diamond Vickers Indenter, Φ1.588mm, Φ2.5mm, Φ5mmBall Indenter |
Hardness Reading | LCD Screen Display |
Test Scale | HRA, HRBW, HRC, HRD, HBW1/30, HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW10/100, HV30, HV100 |
Conversion Scale | HV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HBW |
Magnification | Brinell: 37.5×, Vickers: 75× |
Min. Measuring Unit | Brinell: 0.5μm, Vickers: 0.25μm |
Hardness Resolution | Rockwell: 0.1HR, Brinell: 0.1HBW, Vickers: 0.1HV |
Dwell Time | 0-60 s |
Data Output | Built-in Printer, RS232 Interface |
Max. Sample Height | Rockwell: 185mm, Brinell: 100mm, Vickers: 115mm |
Throat Depth | 165mm |
Power Supply | AC220V, 50Hz |
Execute Standard |
ISO 6508, ASTM E18, JIS Z2245, GB/T 230.2 ISO 6506, ASTM E10, JIS Z2243, GB/T 231.2 ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2 |
Dimension |
Machine: 520 W ×240 D ×740 H mm Packing: 650 W ×370 D ×980 H mm |
Weight |
Net Weight: 80 kg Gross Weight: 105 kg |
