Instruction

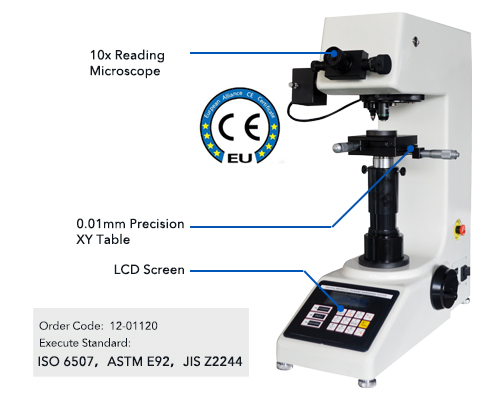

      HV-10 is a precise testing system suitable for hardness analysis of metallic specimens in metallography laboratories or production environments.

      Suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones, thin plastic sections etc.; hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.

     Reliability & Repeatability
  Closed-loop loading control system improves the accuracy of test force, higher repeatability and stability
  Automatic switching between the objective lens and indenter

     Easy Operation and Output
  LCD screen display test force, dwell time, test numbers, hardness
  Input the diagonal length of indentation with the keyboard, hardness value can be automatically calculated
  CCD image automatic measuring system (optional)


Technical Specification


		HV-10
Test Force	kgf	0.3 kgf, 0.5 kgf, 1 kgf, 2 kgf, 2.5 kgf, 3 kgf, 5 kgf, 10 kgf
	N	2.94 N, 4.90 N, 9.80 N, 19.6 N, 24.5 N, 29.4 N, 49 N, 98 N
Test Range		1HV-2967 HV
Hardness Resolution		0.1 HV
Loading Method		Automatic (Loading/Dwell/Unloading)
Turret		Automatic Shifting
Eyepiece		10× Reading Microscope
Objective		10× (Observe), 20× (Measure)
Total Magnification		100×, 200×
Effective Field of View		400 μm
Min. Measuring Unit		0.5 μm
Dwell Time		0-60 s
Light Source		Halogen Lamp
X-Y Test Table		Size: 100×100 mm; Travel: 25×25 mm; Resolution: 0.01 mm
Sample Height		0-170 mm
Throat Depth		130 mm
Power Supply		AC220V, 50Hz
Execute Standard		ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2
Dimension		Machine: 530 W ×280 D ×630 H mm Packing: 620 W ×450 D×760 H mm
Weight		Net Weight: 35kg Gross Weight: 47kg
