Instruction

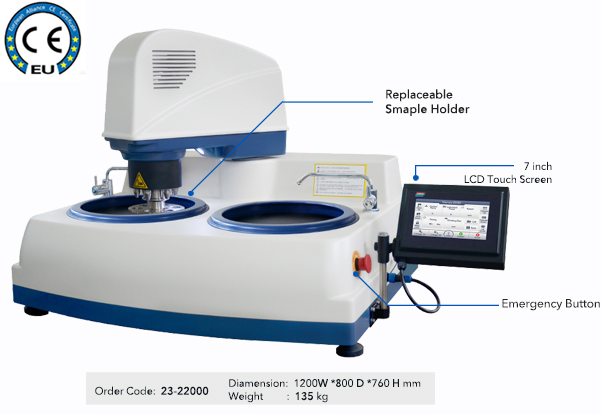

       Venus-2000 is a reliable, robust automatic grinding polishing machine, good choice for specimen grinding and polishing, widely used in metallographic sample preparation and analysis laboratories.

      Versatility
  Center pressure/single point pressure
  Replaceable sample holders (Max. 6 samples)
  Clockwise / Counterclockwise rotation

     Easy Operation
  7“ LCD touch screen, easy to set & display parameters
  Automatic grinding and polishing system, preset time, speed and water outlet
  For different samples, more than ten different parameters can be set and saved
  Semi-rotating design of holder & inner lighting, easy to change samples

    Reliability Safety
  2 * [1.2 KW] quality Brushless DC Motor, long life with low noise
  ABS material body + reinforced base, work more stably
  Spindle leak-proof design to ensure bearing safety
  Precision cast aluminum support chassis design to ensure precise rotational balance

Technical Specification



Item	Spec.
Disc Diameter	Ф250 mm /  Ф300 mm
Base Motor	2*1.2 KW, 100-1000 rpm
Base Rotation	Clockwise / Counterclockwise
Head Motor	200 W, 20-120 rpm
Setting Time	0-99 mins
Pressure Force	0-50 N Single/ 0-160N Centre
Sample Holder	Φ25, Φ30, Φ40 mm or customed
Power Supply	220 V, 50Hz or customed
