Instruction

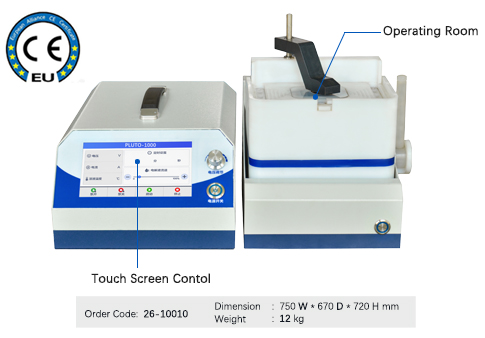

      Pluto-1000 Electrolytic etching & Polishing machine is a metallographic sample preparation machine which combines electrolytic polishing and etching function, suitable for use in factories, universities, research institutions and other laboratories. The machine uses the electrochemical principle to do metallographic sample preparation. The samples which adopt electrolytic polishing and etching avoid the deformation layer caused by the mechanical polishing, so the organization is true without illusion. Therefore it is the best method of preparation of titanium, aluminum, copper and other non-ferrous metals and high-temperature alloy samples. The instrument is designed to have higher operating voltage and operating current, metallographic preparation for the larger size of the sample, especially suitable for welding metallographic sample preparation.


     Feature

1. The maximum output of the power supply is 60V DC voltage and 25A current, which can meet the high voltage and high current requirements for electrolytic polishing of special materials and large area samples.

2. It has stable low voltage output, meeting the requirements for preparing special sample metallographic structures.

3. It can accurately and continuously adjust the working voltage or current by rotating the knob, the voltage and current display real-time on the touch screen.

4. The electrolysis time of the sample can be set and timed to end.

5. Equipped with an electrolyte circulation device, the flow rate is controllable, and fresh corrosion solution can continuously corrode the material during the sample preparation process, taking away the corrosion products on the sample. The polishing effect is better than other stirring methods.

6. The distance between the cathode and anode is fixed, which can ensure consistent corrosion parameters for each sample.

7. By using a certain diameter orifice plate and a set electrolysis current, the sample can be prepared at the required current density.

8. It is equipped with a corrosion liquid temperature display and a corrosion liquid cooling device, which can cool the corrosion liquid in operation through cooling water or other cooling media.

9. The electrolyte container is made of corrosion-resistant materials and equipped with a corrosive liquid recovery device, which facilitates the recovery of corrosive liquid.

10. It is equipped with external output contacts on the back, which is convenient for special sample preparation of electrolysis using other containers or methods.


Technical Specification

ITEM	Spec.
Sample Hole Diameter	Ф10mm, Ф15mm, Ф20mm
Power Input	AC220V, 10A
Electrolytic Output	DC0~60V / 0~25A, Step 1V / 0.1A, Knob control
Electrolytic Time	0~99min
Electrolyte Capacity	500~1000ml
Electric Box Dimensions	255×400×185mm
Corrosion Box Dimensions	270×230×320mm
Net Weight	18kg


Instruction:

ElePol-10 electrolytic polishing and etching machine is a metallographic sample preparation machine which combines electrolytic polishing and etching function, suitable for use in factories, universities, research institutions and other laboratories. The machine uses the electrochemical principle to do metallographic sample preparation. The samples which adopt electrolytic polishing and etching avoid the deformation layer caused by the mechanical polishing, so the organization is true without illusion. Therefore it is the best method of preparation of titanium, aluminum, copper and other non-ferrous metals and high-temperature alloy samples. The instrument is designed to have higher operating voltage and operating current, metallographic preparation for the larger size of the sample, especially suitable for welding metallographic sample preparation.

Main Parameters:


Input power	AC 220V, 10A (max)
Electrolytic output	DC 0~60V / 0~25A, continuously adjustable (1V), digital display
Time display	work time can be set
Electrolyte capacity	300~1000ml
Electric box dimension	450×420×230mm
Corrosion workbench	270×230×320mm
Weight	25kg
