Instruction

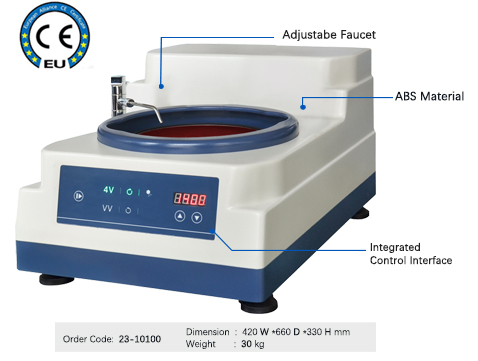

       Mars-100 is reliable, robust manual grinding polishing machine, an economical choice for specimen grinding and polishing, widely used in metallographic sample preparation and analysis laboratories.

     Versatility
  Ф200mm, Ф230mm working discs  for choice

       Easy Operation
  Integrated control interface, easy to set parameters
  Clockwise/counterclockwise & Preset 4 speeds to meet different needs
  Bottom flushing function to eliminate debris
  Adjustable faucet, change water output for different grinding and polishing steps

       Reliability Safety
  [600 W] quality Brushless DC Motor, long life with low noise
  ABS material body + reinforced base, work more stably
  Spindle leak-proof design to ensure bearing safety

Technical Specification


	Mars-100
Disc Diameter	Ф200 mm or Ф230 mm
Motor Power	600 W
Speed	100-1400 rpm
Preset Speed	300, 600, 900, 1400 rpm
Control	Membrane Touch Panel
Power Supply	220V, 50Hz, 6A or Customed
