Instruction

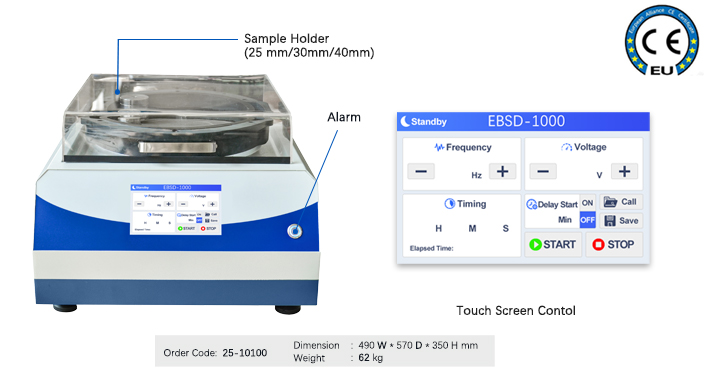

       EBSD-100 is a vibratory polisher that minimizes specimen wear and is suitable for producing high-quality polished surfaces on a variety of materials, including electron backscatter diffraction (EBSD) , SEM, AFM applications

       Suitable for soft and ductile materials, such as Titanium, aluminum, copper, soft steel.

     Versatility
  Ф25mm, Ф30mm, Ф40mm holder for choices

     Easy Operation
  Vibration frequency can be automatically adjusted with the working voltage
  Multiple samples can be placed at one time without personnel on duty
  Touch Screen to set and display all details

     Reliability Safety
  Emergency button to keep machine work safely
  Spring plate and magnetic attraction motor to generate left and right vibration
  Produce almost completely horizontal vibration, effectively remove and avoid defects such as embossing, embedment and plastic rheology

Technical Specification

Item	Spec.
Disc Diameter	Ф300 mm
Power	1.5 KW
Voltage	1-220 V
Frequency	40-240 Hz
Setting Time	0-9999 Mins
Sample Holder	Ф25, Ф30, Ф40 mm
Power Supply	220V, 50Hz, 8A
