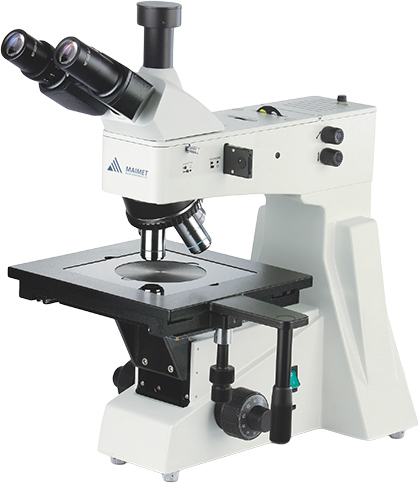

UMET-E200/UMET-E220BD Upright Metallographic Microscope
Description
UMET-E200/UMET-E220BD Upright Metallographic Microscope is suitable to observe surfaces of opaque object. It is equipped excellent UIS optical system and modularization function design so that update system expediently and achieved polarization, dark field observation. Compact and steady main frame body is embodiment for the shock resistance. The ideal ergonomic design is adopted in this unit and has easier operation and wider space. This is ideal optical instrument for micro observation in metallographic structure and surface morphology. It is suitable for research in metallography, mineralogy, precision engineering, etc.
Specification
| Item | UMET-E200 | UMET-E220BD |
| Eyepiece | Wide field WF10X (field number: Φ22mm) | |
|
Infinity plan achromatic objective |
(Equipped with bright field objectives) | (Equipped with bright & dark field objectives) |
| PL L5X/0.12 Work distance: 26.1 mm | PL L5X/0.12BD Work distance: 9.70 mm | |
| PL L10X/0.25 Work distance: 20.2 mm | PL L10X/0.25BD Work distance: 9.30 mm | |
| PL L20X/0.40 Work distance: 8.80 mm | PL L20X/0.40BD Work distance: 7.23mm | |
| PL L50X/0.70 Work distance 3.68 mm | PL L50X/0.70BD Work distance: 2.50 mm | |
| PL L80X/0.80 Work distance: 1.25 mm | PL L80X/0.80BD Work distance: 1.25 mm | |
| Eyepiece tube | Trinocular inclined 30°, can be shot in 100% light flux. | |
| Epi- illumination system | 6V30W halogen lamp, brightness adjustable | 12V50W halogen lamp, brightness adjustable |
|
Integrated field diaphragm, aperture diaphragm and (Y,B,G, frosted glass) switching device. Push-pull analyzer and polarizer. |
||
| Focus system | Coaxial coarse/fine focus system with tension adjustable and up stop, minimum division of fine focusing: 0.7 m. | |
| Nosepiece | Quintuple (Backward ball bearing inner locating) | |
| Stage | Mechanical stage size: 280mmX270mm, moving range: 204mmX204mm | |
Optional Accessories
| Item | UMET-E200 | UMET-E220BD |
| Eyepiece | Dividing eyepiece( field number: Φ22mm) | |
| Objective | Bright field objective:40X 60X 100X (Dry) | Bright & dark field objective: 40X 60X 100X |
| CCD adapter | 0.4X 0.5X 1X 0.5X (With dividing) | |
| Stage | Size: 250mmX230mm, moving range: 154mmX154mm | |
| Camera | USB output: 5.0M/10.0M/16.0Mpixell | |
| VIDEO output: 380/520 TV Line | ||
| Digital camera adapter | CANON (EF) NIKON ( F) | |
