Instruction

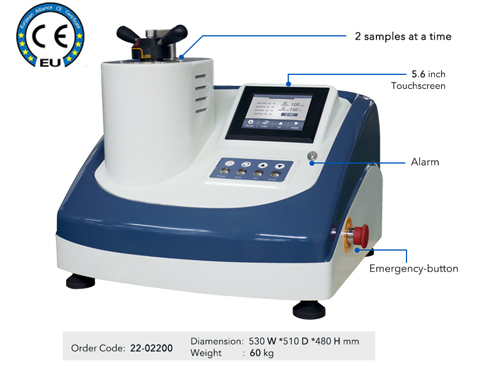

      Desert-200 is a reliable, robust semi-automatic mounting press, it is touchscreen control, and good choice for specimen mounting, widely used in metallographic sample preparation and analysis laboratories.

      Suitable for mounting ferrous or non-ferrous metals, such as cast iron, steel, heat treated tool, thermal spraying, powder metallurgy parts samples.

     Versatility
  Ф25mm, Ф30mm, Ф40mm mounting mold  for choices
  Duplex spacer, allows two mounts to be made at a time

     Easy Operation
  5.6 inch Touchscreen + physical buttons, easy to set parameters and real-time display of mounting data
  Automatic : One-click operation of heating, pressurization, pressure holding, cooling

     Reliability Safety
  Hydraulic pump pressurization, higher pressure, more compact mounted samples
  Sound and light alarm function + cold & heat separation design, safer and more stable operation
  Equipped with water cooling system, sample preparation is safe and fast

Technical Specification


Item	Spec.
Mold Diameter	Ф25mm Ф30mm Ф40mm (One for choice)
Mold Height	140 mm, effective height 85 mm
Heating Power	1.8 KW for Ф25, Ф30 mm       2.4 KW for Ф40 mm
Pressure	50-200 Bar
Pressure Holding	30 s-60 mins
Heating Temperature	50-180 ℃
Temperature Holding	0-5 Mins
Cooking time	0-8 mins
Cooling	External water cooling
Power Supply	220V, 50Hz, 10A
