Instruction

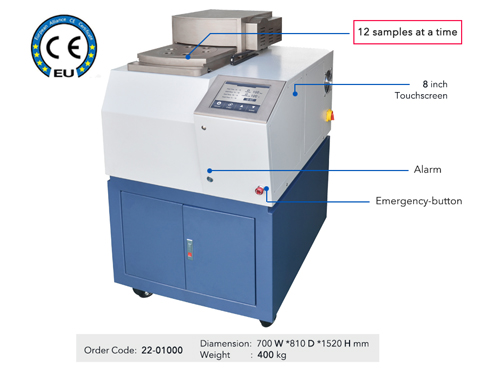

      Desert-1000S is a reliable, robust semi-automatic mounting press, it is touchscreen control, and good choice for production enterprises to prepare large quantities of mounting samples.

     Versatility
  Ф25mm, Ф30mm, Ф40mm mounting mold  for choices
  Duplex spacer, allows 12 mounts to be made at a time

     Easy Operation
  8 inch Touchscreen, easy to set parameters & real-time display of mounting data
  Automatic : One-click operation of heating, pressurization, pressure holding, cooling
  Automatic opening and closing sliding cover system, multiple samples are ejected at one time

     Reliability Safety
  Hydraulic pump pressurization, higher pressure, more compact mounted samples
  Sound and light alarm function + cold & heat Integrated design, safer and more stable operation
  Equipped with water cooling system, sample preparation is safe and fast

Technical Specification


Item	Spec.
Mold Diameter	Ф25mm Ф30mm Ф40mm (One for choice)
Mold Height	130 mm, effective height 80 mm
Heating Power	9 KW
Pressure	50-200 Bar
Pressure Holding	30 s-60 mins
Heating Temperature	50-180 ℃
Temperature Holding	0-20 Mins
Cooking time	0-10 mins
Cooling	External water cooling
Power Supply	380V, 50Hz, 25A
