Instruction

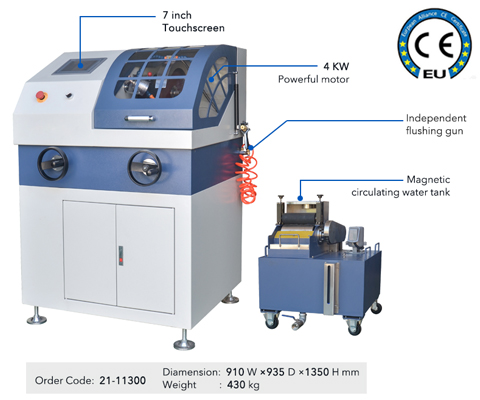

       Mega-300A is a manual/automatic abrasive cutter, provides consistent and repeatable cut quality for medium-sized samples, widely used in metallographic sample preparation and analysis laboratories.

       Suitable for cutting ferrous or non-ferrous metals, such as cast iron, steel, heat treated tool, thermal spraying, powder metallurgy parts, rocks.

     Versatility
  Quick vises for different shapes of specimens
  Manual / Automatic cutting mode, flexible feeding method

     Easy Operation & Display
  7 inch high-definition touch screen, intuitive operation
  Built-in LED lighting & Powerful exhaust devicey
  External flushing gun & mobile magnetic filter circulating water tank

     Reliability Safety
  5.5hp [4kW] powerful motor, easily cut high-strength or large materials
  Enclosed work area & open cover stop protection, safer operation
  X, Y-axis are automatically controlled, speed is automatically adjusted according to the hardness of the material

Technical Specification


Item	Spec.
Cutting	Manual / Automatic, Y-axis Feed
Movement	Y 260 mm, X 40 mm, Z 50 mm
Disc Dimension	Φ 300*2.0*32 mm
Disc Speed	500-3000 rpm
Cutting Capacity	Φ 90 mm
Motor Power	4 KW
T-Table Dimension	435*300 mm, 12 mm T Slot
Water Tank	80 L, 50 L/min
Power Supply	380V 50 Hz
