Instruction

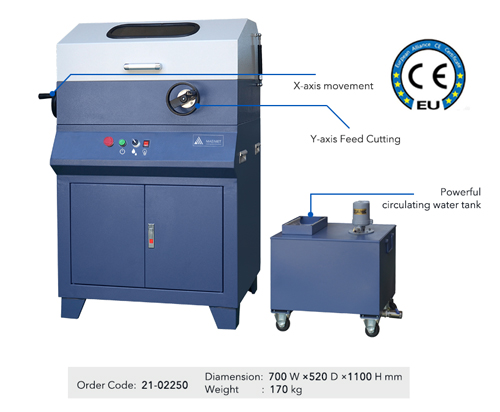

       Mega-250Y is a manual abrasive cutter, provides consistent and repeatable cut quality for medium-sized samples, widely used in metallographic sample preparation and analysis laboratories.

       Suitable for cutting ferrous or non-ferrous metals, such as cast iron, steel, heat treated tool, thermal spraying, powder metallurgy parts, rocks.

     Versatility
  Quick vises for different shapes of specimens
  Manual XY axis movement, more efficient cutting

     Easy Operation
  Locker design for convenient storage of cut off wheel & coolant
  Built-in LED lighting, observe the sample cutting more clearly

     Reliability Safety
  1.5KW quality motor, easily cut medium or high-strength materials
  Enclosed work area & open cover stop protection, safer operation
  External cooling water tank to prevent the sample from being damaged by overheating

Technical Specification


Item	Spec.
Cutting	Manual, Y-axis Feed
Y-axis Movement	270 mm
X-axis Movement	45 mm
Disc Dimension	Φ 250*2.0*32 mm
Disc Speed	2800 rpm
Cutting Capacity	65*65 mm
Motor Power	1.5 KW
T-Table Dimension	250*240 mm, 12 mm T Slot
Water Tank	60 L, 25 L/min
Power Supply	380V 50 Hz
