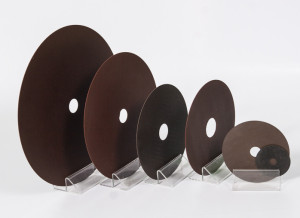

Abrasive Cut-Off Wheels
Maimet Abrasive Cut-Off Wheels provide precision quality for the demanding needs required in the cutting of metallographic specimens.
Available in diameters 4″/100mm to 18″/450mm, wheels are available to cut all hardness’s of Steel, Hard Non-Metallic, and Non-Ferrous Materials.
Sold 10 pcs per pack.
Available in diameters 4″/100mm to 18″/450mm, wheels are available to cut all hardness’s of Steel, Hard Non-Metallic, and Non-Ferrous Materials.
FS-Max Abrasive Cut-off Wheels ( 60+ RC)
Sold 10 pcs per pack.
| Recommend Use | Type/Bond | Dimension | Order Code |
| Very hard steel, 60+ HRC such as heat treated and hardened steel | Al2O3 / Resin Bond | 230 x 1.2 x 32mm | 01-011230 |
| Al2O3 / Resin Bond | 250 x 1.5 x 32mm | 01-011250 | |
| Al2O3 / Resin Bond | 300 x 2.0 x 32mm | 01-011300 | |
| Al2O3 / Resin Bond | 350 x 2.5 x 32mm | 01-011350 | |
| Al2O3 / Resin Bond | 400 x 3.0 x 32mm | 01-011400 | |
| Al2O3 / Resin Bond | 450 x 3.5 x 32mm | 01-011450 | |
| Al2O3 / Resin Bond | 500 x 4.0 x 32mm | 01-011500 |
FS-Medium Abrasive Cut-off Wheels ( 40-60 RC)
Sold 10 pcs per pack.
FS-Soft Abrasive Cut-off Wheels ( 20-40 RC)Sold 10 pcs per pack.
| Recommend Use | Type/Bond | Dimension | Order Code |
| Soft ferrous metals 25-40 HRC, such as | Al2O3 / Resin Bond | 230 x 1.2 x 32mm | 01-031230 |
| Al2O3 / Resin Bond | 250 x 1.5 x 32mm | 01-031250 | |
| Al2O3 / Resin Bond | 300 x 2.0 x 32mm | 01-031300 | |
| Al2O3 / Resin Bond | 350 x 2.5 x 32mm | 01-031350 | |
| Al2O3 / Resin Bond | 400 x 3.0 x 32mm | 01-031400 | |
| Al2O3 / Resin Bond | 450 x 3.5 x 32mm | 01-031450 | |
| Al2O3 / Resin Bond | 500 x 4.0 x 32mm | 01-031500 |
NF-Medium Abrasive Cut-off Wheels ( 100-350 HV)Sold 10 pcs per pack.
| Recommend Use | Type/Bond | Dimension | Order Code |
| Medium Hard Non-Ferrous Materials, Titanium, Zirconium Tought Non-ferrous, such as Titanium, Titanium Alloys, refractory metals | SiC / Resin Bond | 230 x 1.2 x 32mm | 01-041230 |
| SiC / Resin Bond | 250 x 1.5 x 32mm | 01-041250 | |
| SiC / Resin Bond | 300 x 2.0 x 32mm | 01-041300 | |
| SiC / Resin Bond | 350 x 2.5 x 32mm | 01-041350 | |
| SiC / Resin Bond | 400 x 3.0 x 32mm | 01-041400 | |
| SiC / Resin Bond | 450 x 3.5 x 32mm | 01-041450 | |
| SiC / Resin Bond | 500 x 4.0 x 32mm | 01-041500 |
NF-Soft Abrasive Cut-off Wheels ( 50-250 HV)Sold 10 pcs per pack.
| Recommend Use | Type/Bond | Dimension | Order Code |
| For Soft Non-Ferrous/Al/Cu Alloys, (50-250HV) | SiC / Resin Bond | 230 x 1.2 x 32mm | 01-051230 |
| SiC / Resin Bond | 250 x 1.5 x 32mm | 01-051250 | |
| SiC / Resin Bond | 300 x 2.0 x 32mm | 01-051300 | |
| SiC / Resin Bond | 350 x 2.5 x 32mm | 01-051350 | |
| SiC / Resin Bond | 400 x 3.0 x 32mm | 01-051400 | |
| SiC / Resin Bond | 450 x 3.5 x 32mm | 01-051450 | |
| SiC / Resin Bond | 500 x 4.0 x 32mm | 01-051500 |
