Instruction

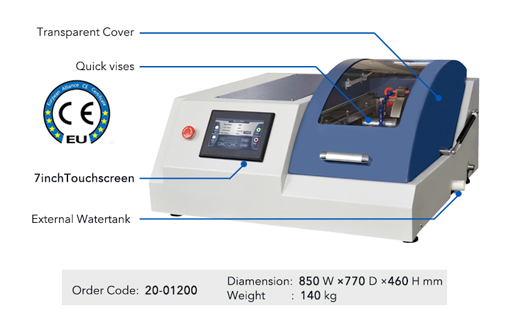

       Micro-200A is automatic precision cutter, it can precisely cuts most kinds of materials, widely used in metallographic sample preparation and analysis laboratories, and is an necessary equipment for failure analysis.

       Suitable for cutting most material including brittle or ductile metals, composites, electronic devices, plastics, cements, laminates, and biomaterials.


      Easy Operation & Display
  7-inch high-sensitivity touch screen display control, easy to set parameters

     Versatility
  Quick vises for different shapes of specimens
  Automatic Y axis feed cutting, more efficient for cutting different materials

     Reliability Safety
  Enclosed work area & open cover stop protection, safer operation
  Overheating and overcurrent protection
  External high-power magnetic circulating water tank, environmental protection and high efficiency, to prevent the sample from being damaged by overheating

Technical Specification


Item	Spec.
Cutting	Automatic, Y-axis Feed
Y-axis Movement	200 mm
Cutting Feedrate	0.7-36 mm/min
Disc Dimension	Φ 230*1.2*32 mm
Disc Speed	500-3000 rpm
Cutting Capacity	Φ 60 mm
Motor Power	1.3 KW
T-Table Dimension	320*225 mm, 12 mm T Slot
Water Tank	36 L， 12 L/min
Power Supply	110V 60 Hz / 220V 50 Hz
