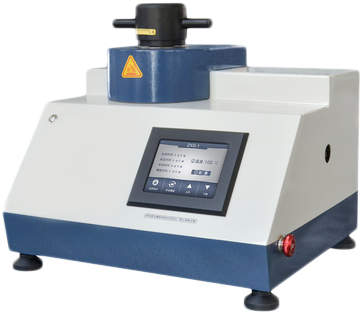

AutoPress-20 Aumatic Hot Mounting Press
Mounting is a very important process of metallographic sample preparation, especially for some difficult holding tiny samples, irregularly shaped samples, and what needs for protecting edge or automatic grinding and polishing, mounting is an essential procedure before sample preparation. MetPress 1A automatic metallographic sample mounting press adopts automatic mechanical pressure. The mounting process is controlled by the program, which realizes the one-key operation of heating, loading, holding, cooling and unloading process. The sample mounting is automatically completed without the need of the operator on duty. The machine adopts gear motor with stable pressure, and the water cooling system makes sample preparation fast. With stable and reliable performance, it is the ideal equipment for sample mounting.
Technical Parameters:
|
Model |
AutoPress-20 |
|
Mould Diameter |
Ф25mm，Ф30mm，Ф40mm (Choose one) |
|
Cavity Height |
89mm |
|
Heating Power |
Ф25mm/Ф30mm 900W; Ф40mm 1.2kW |
|
Pressure |
Mechanical pressure, 130bar |
|
Electromotor Power |
120W |
|
Heating Temperature |
50~180℃ (The default is 120℃) |
|
Heating Time |
1~7min (The default is 5min30s) |
|
Hold Time |
30s~7min (The default is 1min) |
|
Cooling Time |
1~30min (The default is 2min20s) |
|
Cooling Method |
External water source cooling |
|
Power Supply |
220V, 50Hz，10A |
|
Dimensions |
463×402×430mm |
|
Net Weight |
50kg |
