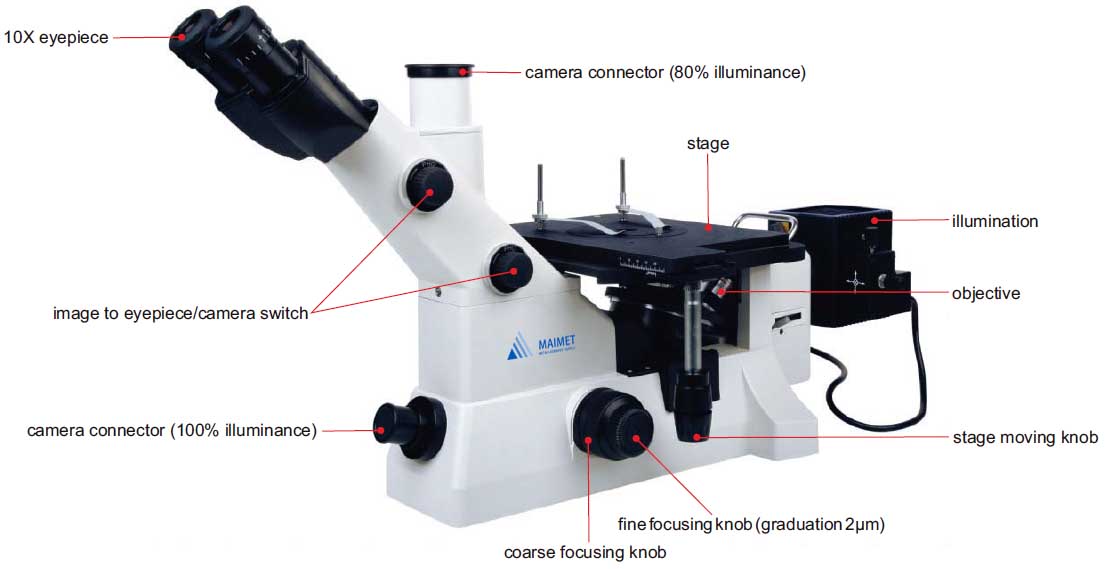

IMET 5000

Optical System

Infinite optical system

●

Extra Wide Field Eyepiece

EW10×/22

●

 EW10×/20 Eyepiece with Scale of Cross hair

●

EW15×/16

○

EW20×/12

○

Infinite LWD Plan
Achromatic Objective

5×/0.12/∞/-(BF/DF)         LWD 10mm

●

10×/0.25/∞/-(BF/DF)        LWD 10mm

●

20×/0.4/∞/0(BF/DF)         LWD 5mm

●

50×/0.75/∞/0(BF/DF)        LWD 1.3mm

●

100×/0.9/∞/0(BF/DF)        LWD 0.7mm

●

Viewing Head

Siedentopf binocular viewing head, Inclined at 30°, Interpupillary 48mm-75mm

●

Kohler Incident Light

12V/50W Halogen light, Center and brightness adjustable

●

Polarizer and analyzer

●

 DIC

○

built-in Green, Blue, Yellow, Gray and ground glass

●

Focusing

Coaxial coarse and fine adjustment, fine division 2μm,

●

Nosepiece

Backward quintuple nosepiece

●

Stage

Double layer mechanical stage 226×178mm, Moving range 40mm×40mm

●

Stage Φ16,Φ40,Teardrop

●

Accessories

Specimen presser

○

Photo/Video attachment

○

0.01mm  Micrometer scale 0.01mm

●

Lamp House Adjustment Objective

●
