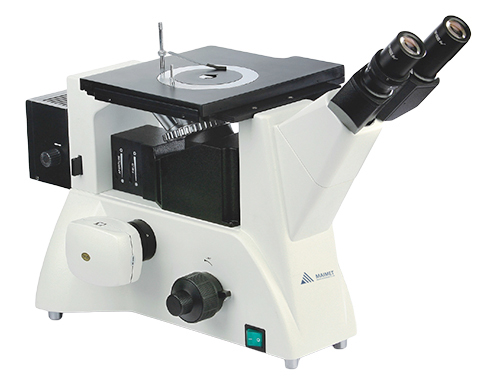

IMET-M120/M160BD Inverted Metallographic Microscope
Description
IMET-M120/M160BD Inverted metallurgical microscope is equipped excellent UIS optical system and modularization function design so that update system expediently and achieved polarization, dark field observation. Compact and steady main frame body is embodiment for the shock resistance. The ideal ergonomic design is adopted in this unit and has easier operation and wider space. This is ideal optical instrument for micro observation in metallographic structure and surface morphology. It is suitable for research in metallography, mineralogy, precision engineering, etc.
Specification
| Item | IMET-M120 | IMET-M160BD |
| Eyepiece | Wide field WF10X (field number 22mm) | |
|
Infinity plan achromatic objective |
(Equipped with bright field objectives) | (Equipped with bright & dark field objectives) |
| PL L10X/0.25 | PL L5X/0.12 BD | |
| PL L20X/0.40 | PL L10X/0.25 BD | |
| PL L50X/0.70(spring) | PL L20X/0.40 BD | |
| PL L100X/0.85 ( dry spring) | PL L50X/0.70 BD | |
| Eyepiece tube | Inclination 45 oand interpupillary distance: 53~75mm. | |
| Focus system | Coaxial coarse/fine focus with tension adjustable and up stop, minimum division of fine focusing: 2 m. | |
| Nosepiece | Quintuple (Backward ball bearing inner locating) | |
| Stage | Mechanical stage, size: 242mmX200mm and moving range : 30mmX30mm. | |
|
Rotundity and rotatable stage size: maximal measurement: 130mm and minimal clear aperture is less then 20mm. |
||
| Illumination system | 6V30W halogen lamp, brightness adjustable. | 12V50W halogen lamp, brightness adjustable |
| Integrated field diaphragm , aperture diaphragm and system polarizer. | ||
| Equipped with frosted glass and yellow ,green and blue filters | ||
Optional Accessories
| Item | IMET-M120 | IMET-M160BD |
| Eyepiece | Dividing eyepiece(field number 22mm) | |
| Objective | 5X 40X 60X 80X 100X / Bright field objective | 40X 60X 80X 100X / Bright & dark field objective |
| CCD adapter | 0.5X 1X 0.5X with dividing | |
| Camera | USB output: 5.0M/10.0M/16.0Mpixell | |
| VIDEO output: 380/520 TV Line | ||
| Digital camera adapter | CANON (EF) NIKON ( F) | |
