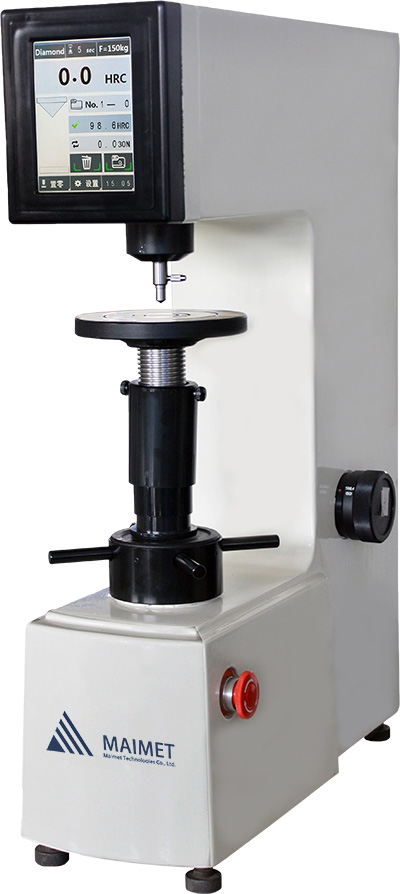

HR-150M Digital Rockwell Hardness Tester
HR-150M Digital Rockwell hardness tester adopts the high resolution color touch screen with high brightness display. It has a good reliability, excellent operation and easy watching, so it is a high-tech product combining the mechanic and electric features. It can show and set the present scale, test force, test indenter, dwell time and hardness conversion; the main function is as follows: Selection of all the Rockwell scales; Conversion scales of different kinds of hardness; Display backlight adjustable with energy-saving mode; Real time data saving in the folder, totally six folders, the data can be arbitrary deleted and printed out; Test results can be saved in real time with automatic calculation of maximum, minimum and average value; The interface is visual and clear, very easy to operate; With RS232 interface for connecting to the computer.
Application Range
Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc.
Technical Specification
| Model | HR-150M |
| Initial Test Force | 10kgf (98.07N) |
| Total Test Force | 60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N) |
| Indenter |
Diamond Rockwell Indenter, ф1.588mmBall Indenter |
| Loading Method | Automatic (Loading/Dwell/Unloading) |
| Hardness Reading | Touch Screen Display |
| Test Scale | HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV |
| Conversion Scale | HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW |
| Data Output | Built-in Printer，RS232 Interface |
| Hardness Resolution | 0.1HR |
| Dwell Time | 0~60s |
| Max. Height of Specimen | 185mm |
| Throat | 165mm |
| Power Supply | AC220V，50Hz |
| Execute Standard | ISO 6508，ASTM E18，JIS Z2245，GB/T 230.2 |
| Dimension |
520×215×700mm， Packing Dimension: 650×370×950mm |
| Weight | Net Weight: 78kg，Gross Weight: 100kg |
