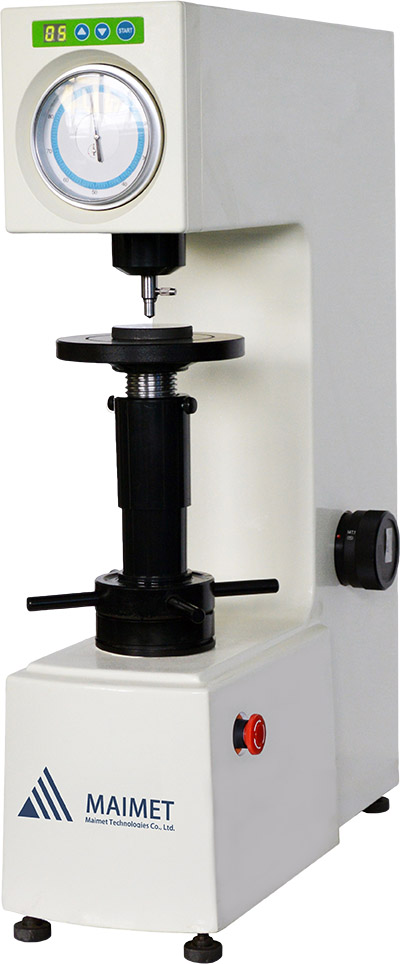

SHR-45E Motorized Superficial Rockwell Hardness Tester
Main Function
SHR-45E Motorized superficial Rockwell hardness tester adopts the mechanism of automatic loading and unloading of the test force, the test force is regulated by the load-change hand wheel. It can select the dwell time and is very easy to use. Besides setting zero to dial, there is no man-made error. The instrument has high sensitivity and stability.
Application Range
Suitable for surface quenched steel, surface heat treating and chemical treating materials, copper alloy, aluminum alloy, sheet, zinc layers, chrome layers, tin layers,bearing steel and cold and hard casting etc.
Technical Specification
|
Model |
SHR-45E |
|
Initial Test Force |
3kgf (29.42N) |
|
Total Test Force |
15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N) |
|
Indenter |
Diamond Rockwell Indenter, ф1.588mmBall Indenter |
|
Loading Method |
Automatic (Loading/Dwell/Unloading) |
|
Hardness Reading |
Dial |
|
Hardness Resolution |
0.5HR |
|
Dwell Time |
2~60s |
|
Max. Height of Specimen |
185mm |
|
Throat |
165mm |
|
Power Supply |
AC220V，50Hz |
|
Execute Standard |
ISO 6508，ASTM E18，JIS Z2245，GB/T 230.2 |
|
Dimension |
520×215×700mm， Packing Dimension: 650×370×950mm |
|
Weight |
Net Weight: 73kg，Gross Weight: 100kg |
