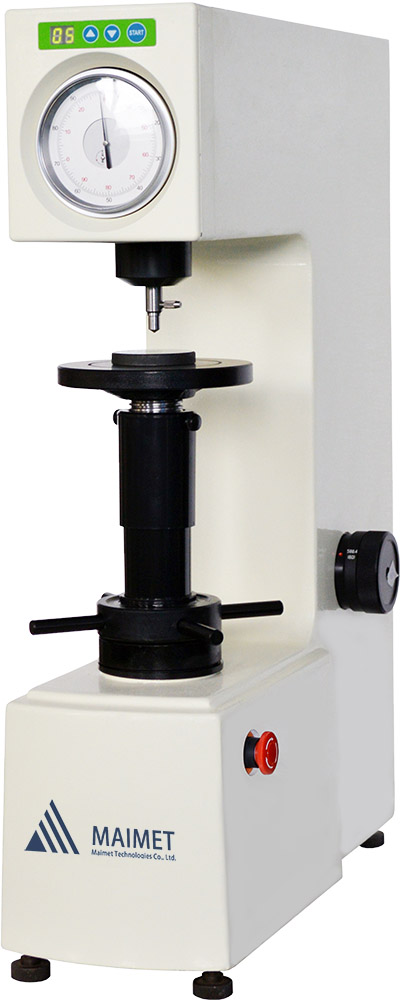

HR-150E Motorized Rockwell Hardness Tester
HR-150E Motorized Rockwell hardness tester adopts the mechanism of automatic loading and unloading of the test force, the test force is regulated by the load-change hand wheel. It can select the dwell time and is very easy to use. Besides setting zero to dial, there is no man-made error. The instrument has high sensitivity and stability.
Application Range
Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc.
Technical Specification
| Model | HR-150E |
| Initial Test Force | 10kgf (98.07N) |
| Total Test Force | 60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N) |
| Indenter |
Diamond Rockwell Indenter, ф1.588mmBall Indenter |
| Loading Method | Automatic (Loading/Dwell/Unloading) |
| Hardness Reading | Dial |
| Hardness Resolution | 0.5HR |
| Dwell Time | 2~60s |
| Max. Height of Specimen | 185mm |
| Throat | 165mm |
| Power Supply | AC220V，50Hz |
| Execute Standard | ISO 6508，ASTM E18，JIS Z2245，GB/T 230.2 |
| Dimension |
520×215×700mm， Packing Dimension: 650×370×950mm |
| Weight | Net Weight: 78kg，Gross Weight: 100kg |
