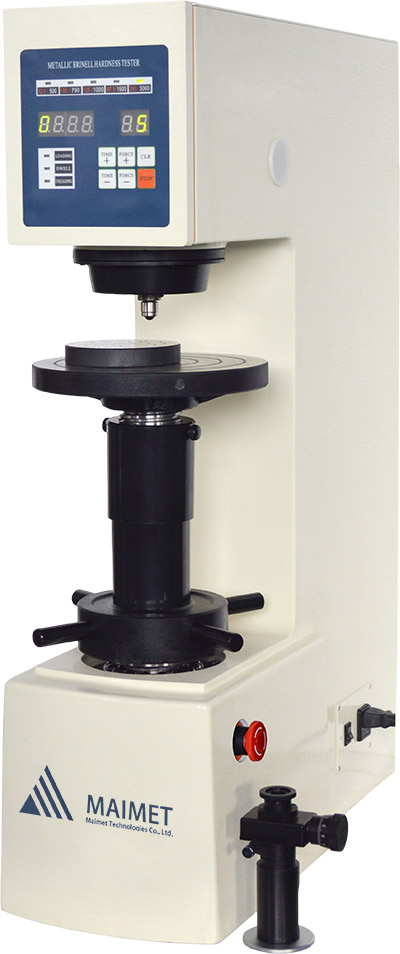

EHB-3000 Electronic Brinell Hardness Tester
EHB-3000 Electronic Brinell hardness tester is a unified product combining the precise mechanical structure and the load cell control system. The instrument adopts the motorized test force application without weights, and uses 0.5‰ accuracy compression sensor to feedback and the CPU control system to automatically compensate the test force lost during the test. The test force and dwell time can be directly set on the touch keyboard with reliable repeatability, precise reading and easy operation. It can be equipped with V1.0 Brinell image automatic measuring system.
Application Range
Suitable for cast iron, steel products, nonferrous metals and soft alloys etc. Also suitable for some nonmetal materials such as rigid plastics and bakelite etc.
Technical Specification
| Model | EHB-3000 | |
| Test Force | kgf | 62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf |
| N | 612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N | |
| Test Range | 3.18～653HBW | |
| Hardness Reading | Check Hardness Table | |
| Microscope | 20× Reading Microscope | |
| Effective Field of View | 6mm | |
| Min. Measuring Unit | 5μm | |
| Dwell Time | 0~60s | |
| Max. Height of Specimen | 205mm | |
| Throat | 130mm | |
| Power Supply | AC220V，50Hz | |
| Execute Standard | ISO 6506，ASTM E10，JIS Z2243，GB/T 231.2 | |
| Dimension |
545×235×755mm， Packing Dimension: 650×435×1020mm |
|
| Weight | Net Weight: 130kg，Gross Weight: 160kg | |
