Main Function

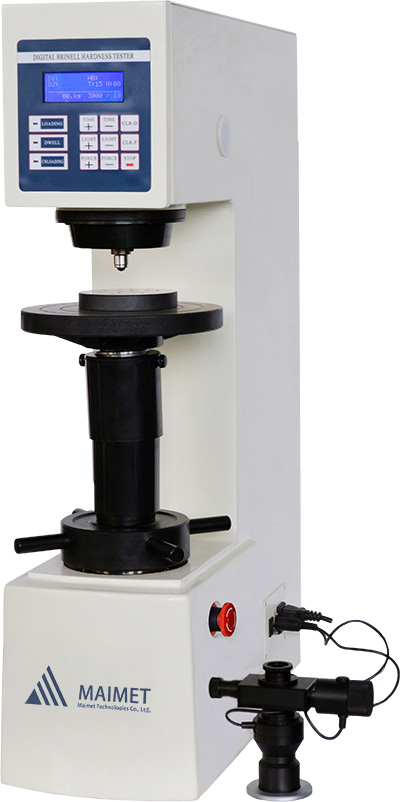

EHB-3000M Digital Brinell hardness tester is a unified product combining the precise mechanical structure and the load cell control system. The instrument adopts the motorized test force application without weights, and uses 0.5‰ accuracy compression sensor to feedback and the CPU control system to automatically compensate the test force lost during the test. With external digital measuring microscope, no need for checking the table or inputting the diagonal of the indentation, it can directly show the hardness value, test force, dwell time and indentation length. As long as press the eyepiece button after measuring the indentation length, it can automatically get the hardness value and shows on the screen, with precise reading and easy operation.

Application Range

Suitable for cast iron, steel products, nonferrous metals and soft alloys etc. Also suitable for some nonmetal materials such as rigid plastics and bakelite etc.

Technical Specification
