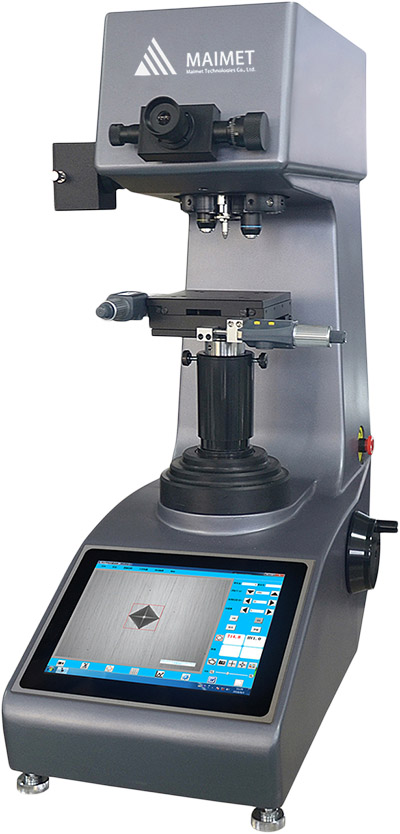

SHVT-10M/30M/50M Digital Vickers Hardness Tester
Main Function
This instrument is a new generation of Vickers hardness tester. It adopts the integrated design of hardness tester and panel computer, all the testing parameters can be selected on the panel computer. With touch screen, it operates quickly and conveniently and displays clearly and intuitively. With CCD image acquisition system, it can show dynamic indentation image, lock the image and automatically get the Vickers hardness value with high precision and stability, and avoid the human errors. The hardness tester with complete functions reaches the advanced level.
· It adopts the integrated design of hardness tester and panel computer, with Windows 7 operating system, it has all functions of computer and can be connected to the output devices such as external screen and printer;
· With three objectives for measurement, automatic recognition and shifting between the objective and the indenter;
· The lifting screw adopts worm and gear structure with smooth transmission;
· With digital X-Y test table, it makes position and measurement more precise;
· Test force loading, dwell and unloading is automatically finished;
· With CCD image acquisition system, it shows the image clearly and gets the hardness value automatically;
· With the function of hardness scale conversion;
· It can automatically save the measuring data, generate the hardness-depth curve and save as WORD or EXCEL document.
Application Range
Suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones, thin plastic sections etc.; hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.
Technical Specification
| Model | SHVT-10M / 30M / 50M |
| Test Force | kgf, N |
| XHVT-10Z |
0.2kgf, 0.3kgf, 0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf 1.96N, 2.94N, 4.90N, 9.80N, 19.6N, 24.5N, 29.4N, 49N, 98N |
| XHVT-30Z |
0.3kgf, 0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf, 20kgf, 30kgf 2.94N, 4.90N, 9.80N, 19.6N, 24.5N, 29.4N, 49N, 98N, 196N, 294N |
| XHVT-50Z |
0.5kgf, 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf, 20kgf, 30kgf, 50kgf 4.90N, 9.80N, 19.6N, 24.5N, 29.4N, 49N, 98N, 196N, 294N, 490N |
| Test Mode | HV/HK |
| Test Range | 1HV~2967HV |
| Loading Method | Automatic (Loading/Dwell/Unloading) |
| Shifting between Objective and Indenter | Automatic Shifting |
| Micro Computer | CPU: Intel I5，Memory: 4G，SSD: 128G |
| CCD Pixel | 1.30 Million |
| Conversion Scale | HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW |
| Hardness Reading | Indentation Display and Automatic Measuring on Touch Screen |
| Data Output | WORD or EXCEL Report with Curve Chart |
| Objective | 10× ，20× ，40× |
| Effective Field of View | 10×：680μm，20×：340μm，40×：170μm |
| Min. Measuring Unit | 10×：0.1μm，20×：0.05μm，40×：0.025μm |
| Dwell Time | 0~60s |
| Light Source | Halogen Lamp |
| Digital X-Y Test Table | Size: 120×120mm; Travel: 25×25mm; Resolution: 0.001mm |
| Max. Height of Specimen | 170mm |
| Throat | 130mm |
| Power Supply | AC220V，50Hz |
| Execute Standard | ISO 6507，ASTM E92，JIS Z2244，GB/T 4340.2 |
| Dimension |
560×335×675mm， Packing Dimension: 650×380×960mm |
| Weight | Net Weight: 48kg，Gross Weight: 62kg |
