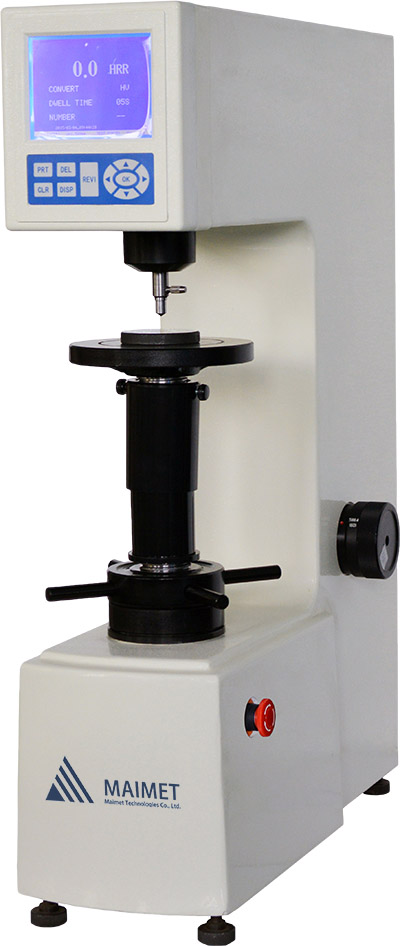

PHR-150M Digital Plastics Rockwell Hardness Tester
Main Function
PHR-150M Digital plastics Rockwell hardness tester is equipped with a newly-designed large displaying screen with good reliability, excellent operation and easy watching, thus it is a high-tech product combining the mechanic and electric features. It can show and set the present scale, test force, test indenter, dwell time and hardness conversion; the main function is as follows: Selection of all the plastics Rockwell scales; Conversion scales of different kinds of hardness; Test results can be saved and printed out, automatic calculation of maximum, minimum and average value; With RS232 interface for connecting to the computer.
Application Range
Suitable for hard plastics, hard rubbers, aluminum, tin, copper, soft steel, synthetic resins and fricative materials etc.
Technical Specification
|
Model |
PHR-150M |
|
Initial Test Force |
10kgf (98.07N) |
|
Total Test Force |
60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N) |
|
Indenter |
Ф3.175mmBall Indenter, Ф6.35mmBall Indenter, Ф12.7mmBall Indenter |
|
Loading Method |
Automatic (Loading/Dwell/Unloading) |
|
Hardness Reading |
LCD Screen Display |
|
Test Scale |
HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV |
|
Conversion Scale |
HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW |
|
Data Output |
Built-in Printer，RS232 Interface |
|
Hardness Resolution |
0.1HR |
|
Dwell Time |
0~60s |
|
Max. Height of Specimen |
185mm |
|
Throat |
165mm |
|
Power Supply |
AC220V，50Hz |
|
Execute Standard |
ISO 6508，ASTM E18，JIS Z2245，GB/T 230.2 |
|
Dimension |
520×215×700mm， Packing Dimension: 650×370×950mm |
|
Weight |
Net Weight: 78kg，Gross Weight: 100kg |
