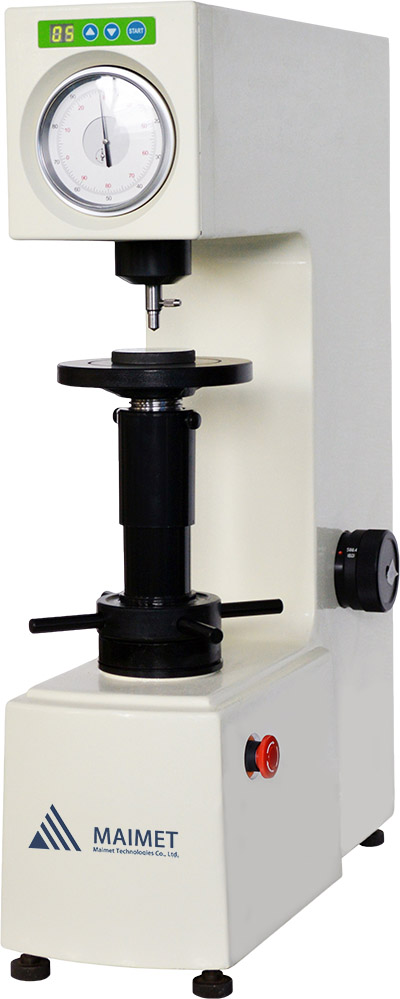

PHR-150 Plastics Rockwell Hardness Tester
PHR-150 Plastics Rockwell hardness tester adopts the mechanism of automatic loading and unloading of the test force, the test force is regulated by the load-change hand wheel. It can select the dwell time and is very easy to use. Besides setting zero to dial, there is no man-made error. The instrument has high sensitivity and stability.
Application Range
Suitable for hard plastics, hard rubbers, aluminum, tin, copper, soft steel, synthetic resins and fricative materials etc.
Technical Specification
| Model | PHR-150 |
| Initial Test Force | 10kgf (98.07N) |
| Total Test Force | 60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N) |
| Indenter | Ф3.175mmBall Indenter, Ф6.35mmBall Indenter, Ф12.7mmBall Indenter |
| Loading Method | Automatic (Loading/Dwell/Unloading) |
| Hardness Reading | Dial |
| Hardness Resolution | 0.5HR |
| Dwell Time | 2~60s |
| Max. Height of Specimen | 185mm |
| Throat | 165mm |
| Power Supply | AC220V，50Hz |
| Execute Standard | ISO 6508，ASTM E18，JIS Z2245，GB/T 230.2 |
| Dimension |
520×215×700mm， Packing Dimension: 650×370×950mm |
| Weight | Net Weight: 78kg，Gross Weight: 100kg |
